PaigeX™
Copper to Aluminum Transition Cable
Lower cable costs. Maintain copper connections. Power with confidence.
PaigeX™ is an innovative pre-terminated solution that makes transitioning from copper to aluminum cable not only possible—but practical. Designed specifically for utility-scale solar applications, PaigeX™ allows projects to take advantage of the cost savings of aluminum cable, while maintaining copper connectivity at the equipment level.
Gauges ranging from #2 to #15 AWG (aluminum trunk)
Copper ends available in #6 to #10 AWG
Factory-tested for performance and durability
Water-tight, rugged housing (IP68 rated)
Engineered for harsh outdoor environments
Cables are certified to UL-9703

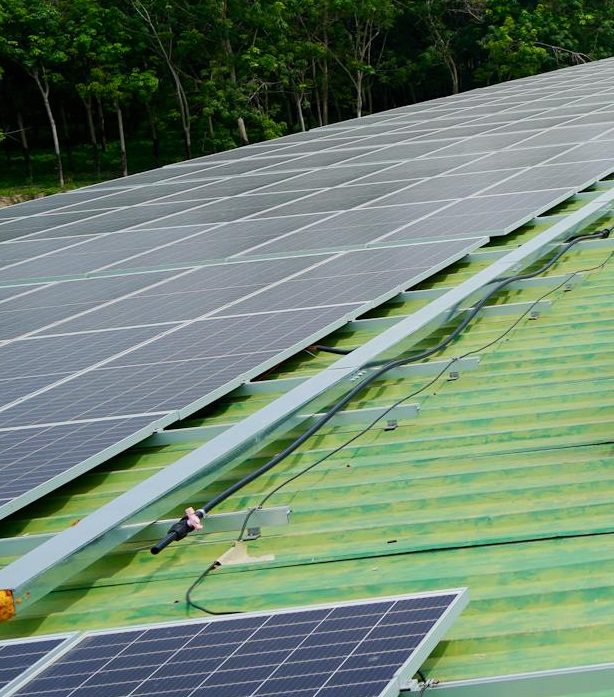

Benefits of PaigeX™
- Lower Material Costs: Replace long copper runs with aluminum cable and reduce cable spend by up to 35%.
- Faster Installation: Pre-terminated connectors reduce labor time in the field and eliminate the need for on-site terminations.
- Reliable Connections: Each PaigeX assembly includes robust, IP68-rated inline transitions with copper cable stubs for seamless equipment integration. Cables are certified to UL-9703.
- Configurable Options: Choose from multiple standard sizes or request custom configurations to match your site requirements.
Product Overview
Each PaigeX cable assembly features aluminum conductors for the cable run with factory-terminated copper ends, allowing easy connection to string inverters, combiner boxes, or other electrical equipment.
| Part # (Length = XXX) | End Cable Size(CU) | Trunk Cable Size(AL) |
|---|---|---|
| 32-PX101510XXXMFSRD (BK) | #10 AWG | #15 AWG |
| 32-PX15615XXXMFSRD (BK) | #15 AWG | #6 AWG |
| 32-PX1566XXXMFSRD (BK) | #15 and #6 AWG | #6 AWG |
| 32-PX646XXXMFSRD (BK) | #6 AWG | #4 AWG |
| 32-PX626XXXMFSRD (BK) | #6 AWG | #2 AWG |
Part Numbering Order System
| Renewable | PaigeX Cable | CU End Gauge | AL Gauge | CU End Gauge | Length | End Gender | Color | |
|---|---|---|---|---|---|---|---|---|
| 32 | PX | 15 | 15 | 15 | XXX | MF | S | RD (RED) |
| 10 | 6 | 10 | FM | S | BK (Black) | |||
| 6 | 4 | 6 | ||||||
| 2 | ||||||||
If you can dream it, we can make it.
Paige is a US-based company that's supported more than 8GW of projects. We've worked with the nation's top EPCs, developers and utility providers, and are proud to bring over 65 years' of wire and cable engineering to the renewables industry.
